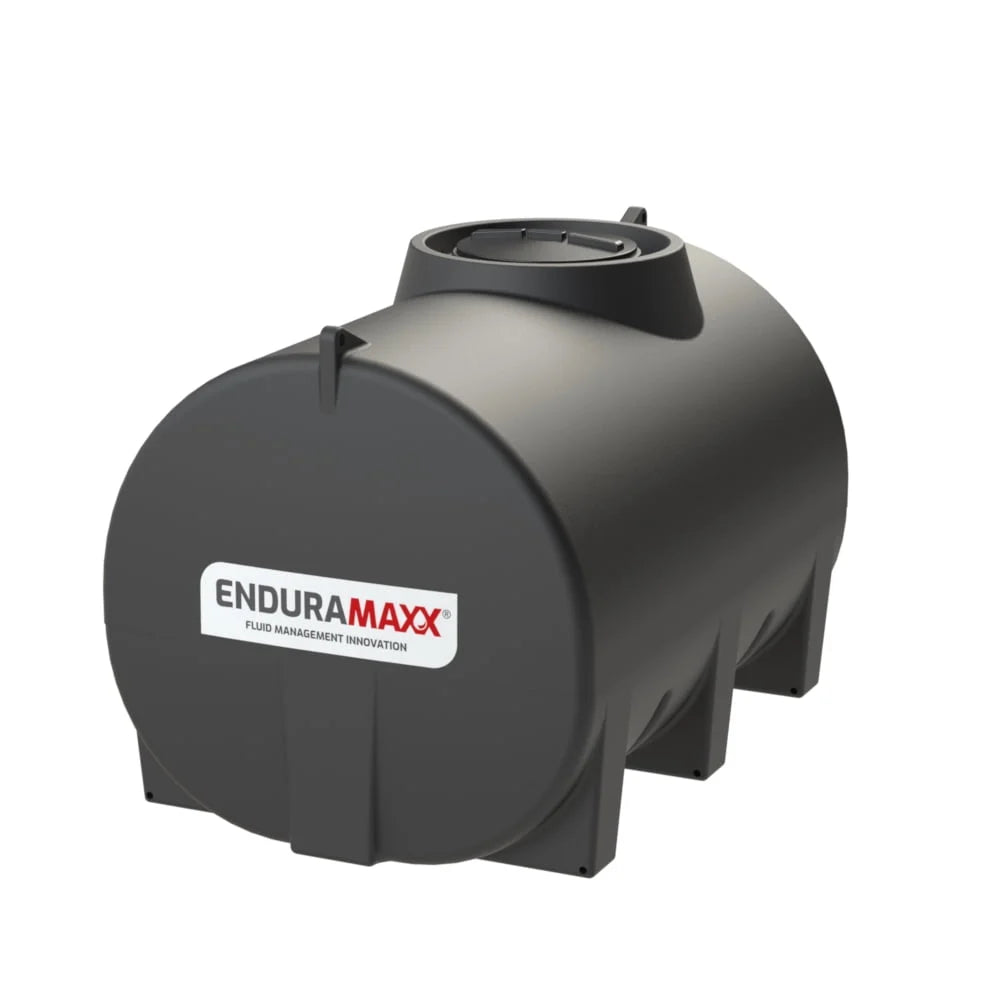

5,000 Litre Horizontal Sprayer Tank

Please note: Tank sizes quoted are subject to a +/- 3% variation

Technical Information

5,000 Litre Horizontal Sprayer Tank for water & fertiliser

Enduramaxx’s 5,000 Litre Horizontal Sprayer Tank for sprayer bowsers are designed to be used as a bowser or holding water tank for crop spraying and other uses around the farm.  These plastic water tanks hold water for crop spraying and help save time for farmers and sprayer constructors when filling the sprayer. With sprayers getting bigger, consideration needs to be given to reducing time spent filling up sprayers from the main as on a lot of farms the mains water pressure is lower.

These self-supporting horizontal tanks are rotationally moulded from UV stabilised MDPE medium density polyethene. This high-quality tank guarantees strength impacts resistance and durability and UV Stabilised for outside use.

5,000 Litre Horizontal Sprayer Water Tank popular uses

• Transportation of molasses, liquid feed, and liquid fertiliser
• Mixer tank
• Water bowsers hire for clean water supply
• Potable water for public events
• Dust suppression
• Used in construction and civil engineering environments where the mains supply is not available
• Sprayer tank for agricultural purposes
• Storage of AdBlue
• Nurse tank

Sprayer Tank Customisation

These water and fertiliser tanks for sprayers often require a mains valve, outlet tap and camlock or hose tail fittings. Depending on the size of the sprayer, water pipe fittings are available from 25mm (1”) to 100mm (4”) along with additional venting to save a vacuum in the tank.

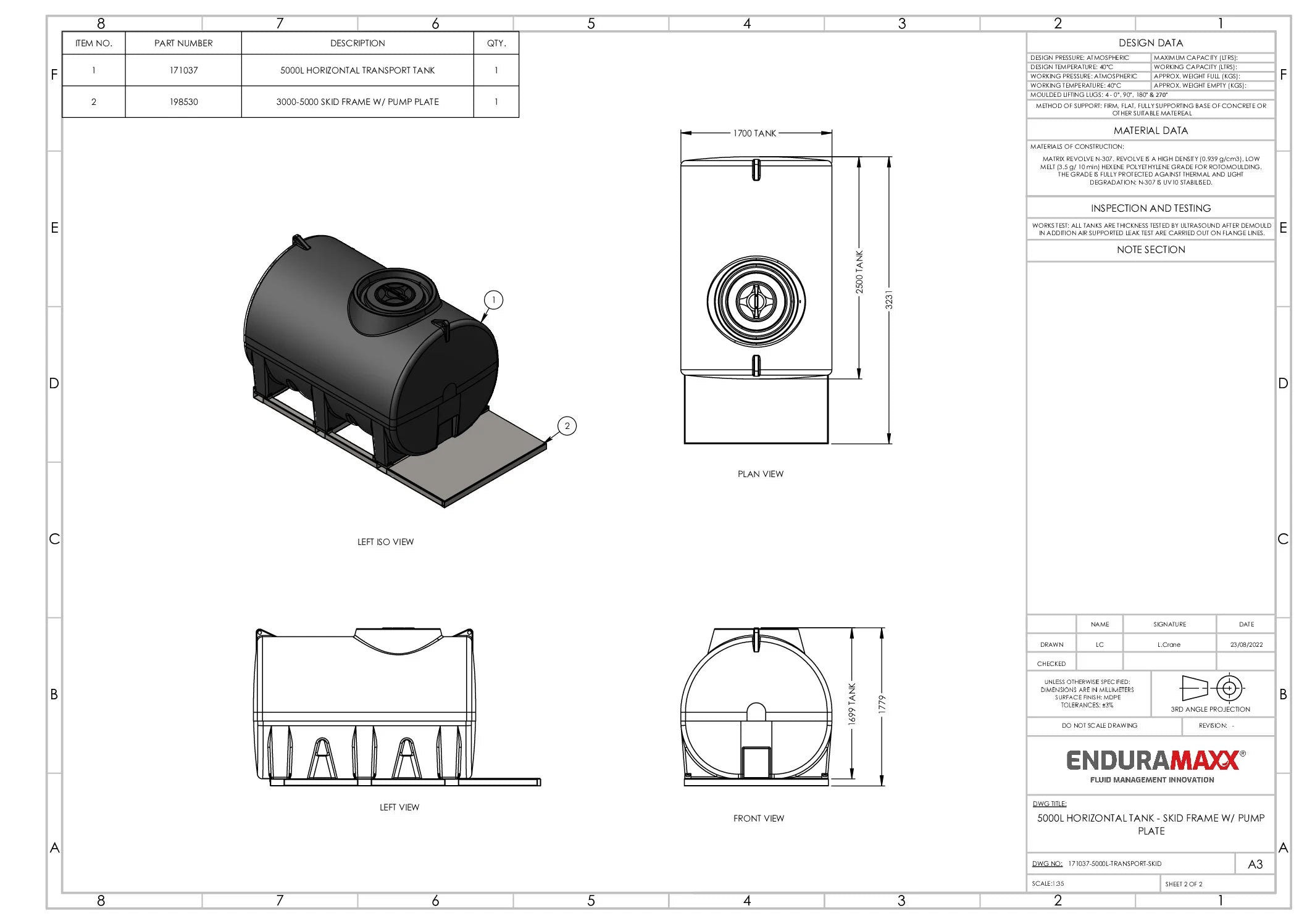

Skid Frames / Mounting Frames for horizontal water bowsers

Specifically designed for mounting onto trailers, skid frames are available for our horizontal fertiliser and water tanks.  There is an optional pump mounting plate that enables the fitting of different pumps and chemical cabinets for chemical storage or induction hoppers.

Skid Bowsers are designed for water transport and fertiliser transport.  These are available with a wide range of water pumps, pressure washer and dust suppression dribble bars to suit your requirements.

Premix Sprayer Bowsers

These horizontal tanks or premix spryer bowsers are often used in conjunction with a vertical water tank to help save farmers and sprayer contractors time.

Spray contractors have long used bowsers, and by many taking on more land miles away from their base, sprayer bowsers can increase output so by sprayer by up to 25% according to agrochemical manufacturer Syngenta by reducing the time spent filling up.

Rust Deposits in Spray Lines

2nd hand or used metal tanks can be picked up cheaply however the older a metal tank gets, the risk of rust inside the tank increases. Rust deposits in spray lines can block the fine nozzles giving an uneven spray pattern.

Assembling spray lines and washing through can take an immense amount of time, often running in several hours or a day resulting in many acres of fields unsprayed.

Heavy Duty Storage Tanks for Liquid Fertilizer

These horizontal tanks are designed for use as fertiliser bowser as well as a sprayer water tank.   Our range of horizontal fertiliser tanks is designed to store liquids up to 1.5 SG and enable farmers to transport fertiliser on trailer or bowsers.

Care should be taken regarding the weights of the tank on the trailer as fertilizer can be up to 40% heavier than water.

Can I mount a horizontal tank on to a trailer?

Horizontal tanks can be mounted directly onto a trailer by using the mounting pins in the legs of the tank and by supporting the spine of the tank.  This allows the tanks to be mounted onto site tow and slow tow trailers for the sprayer season or for permanent mounting.

Can sprayer tanks be used for rainwater harvesting?

Sprayer water tanks are often used in conjunction with rainwater harvesting. Rainwater harvesting is a way to collect rainwater that falls on the roof of barns and sheds saving money on mains supply water.  These tanks are available with a range of rainwater filters for collecting moss and leaves.

Potable Water Storage Tanks

Our tanks can be manufactured as drinking water tanks which are manufactured from WRAS approved polymer (Water Regulations Advisory Scheme). These potable tanks are available in black, boat blue or natural.

Delivery of your sprayer water tank

Our water tanks are manufactured at our factory in Lincolnshire.  Most plastic tanks including underground tanks and rainwater tanks are stocked for collection or quick delivery throughout the UK.

We are available to deliver direct to the site for installers to save double the handling of these tanks. In some cases where clients cannot offload the tank, we can offer Hiab deliveries which are priced upon request. Please view our above-ground installation guide here.

How big is a 5,000 Litre Sprayer Water Tank?

Watch our Horizontal Transport Tank Video Below
